CM-2 (discontinued)

Tube Overdrive

Larger Images

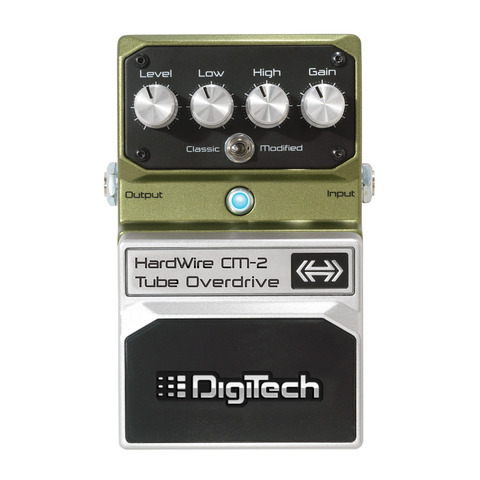

The HardWire CM-2 Tube Overdrive adds a new dimension to your tone. Overdrive should be transparent and responsive to your touch and the CM-2 Tube Overdrive offers this with two modes of operation: Classic and Modified. Classic is transparent and articulate while Modified adds more gain and a "bigger" low end. As with all HardWire pedals, the CM-2 is crafted from premium all-metal components to perform night after night, tour after tour.


More Details


  Version Language Size Uploaded
CM-2 Owner's Manual-German   de  758 KB Feb 07, 2013
CM-2 Owner's Manual-French   fr  1.12 MB Feb 07, 2013
CM-2 Owner's Manual-Spanish   es  1.13 MB Feb 07, 2013
CM-2 Owner's Manual-English   en  1.6 MB Apr 28, 2015

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


2 Modes of operation: Classic and Modified

  • Classic Mode offers transparent, responsive overdrive
  • Modified Mode adds more gain and more low end

True Bypass circuitry preserves your tone in bypass

Constant High-Voltage operation for uncompromised tonal quality

HardWire Pedals include the following stage accessories

  • Stomplock™ knob guard locks your tone in place and prevent tampering or accidental knob adjustments onstage
  • Pedal Switch Glow Sticker helps you locate the pedal in adverse stage lighting
  • Custom-cut Hook and Loop Pedalboard Pad to attach and lock your pedals to your pedalboard


Input 1/4" Unbalanced (Tip-Sleeve)
Input Impedance 500 kOhms - effect on
Output 1/4" Unbalanced (Tip-Sleeve)
Output Impedance 1 kOhm - effect on
Controls Level, Low, High, Gain knobs
Switches Classic/Modified switch, On/Off foot switch
Battery Type Single 9 VDC
Battery Life 17 Hours
Power Supply 9 VDC, 220mW consumption, 25mA draw
Power Supply (US and Canada) 120 VAC, 60 Hz Adapter: PS200R - 120
Power Supply (Japan) 100 VAC, 50/60 Hz Adapter: PS200R - 100
Power Supply (Europe) 230 VAC, 50 Hz Adapter: PS200R - 230
Power Supply (UK) 240 VAC, 50 Hz Adapter: PS200R - 240
Dimensions 3.5" Width x 5.5" Length x 2.25" Height
Unit Weight 1.3 lbs
