FreqOut

Natural Feedback Creator

MSRP $257.07
$179.95
Save $77.12!
Buy It Now
Larger Images

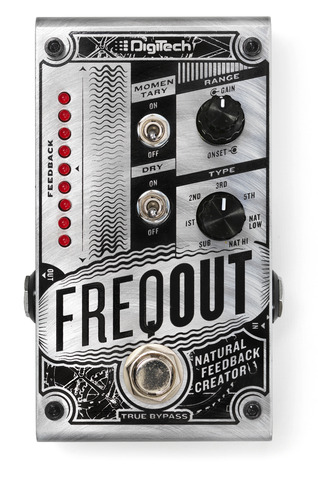

The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position.

More Details

The FreqOut has adjustable feedback Onset (delay before feedback begins), Gain (feedback level to balance with your dry signal), Dry On/Off, latching or momentary operation, true bypass, and a rugged road-tough steel chassis.

The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

Audio Demos

Downloads

  Version Language Size Uploaded
Safety and Quick Start Guide-English   en  595 KB Feb 21, 2017
How It Works   en  603 KB Jan 19, 2017
FreqOut Owner's Manual-English   en  1.72 MB Feb 20, 2017

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Natural Feedback at any level with or without distortion
  • Onset Delay and Level balance controls
  • 7 Harmonic Feedback types
  • Dry Defeat
  • Momentary/Latching modes
  • True Bypass

Specifications

Input 1/4" Unbalanced (Tip-Sleeve)
Max Input Level +5 dBu
Input Impedance 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Output 1/4" Unbalanced (Tip-Sleeve)
Max Output Level +10 dBu
Output Impedance 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Controls Feedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio > -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Power Consumption 2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements 9 VDC External Adapter (sold separately)
Power Supply PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output 9 VDC 1.3 A
Weight 0.8 lbs. (0.363 kgs.)
Dimensions 4.75” (L) x 2.875” (W) x 1.75” (H)

Accessories

PS0913DC-01 | DigiTech 9V DC Power Supply (US/EU/JA)
PS0913DC-01 Main photo
Larger Images

Power your DigiTech iStomp, JamMan Solo XT, or Whammy 5 with the DigiTech PS0913DC-01.

The DigiTech PS0913DC-01 is a 9 volt DC power supply.


News & Reviews

Support/FAQs

FreqOut FAQs

Where should I put the FreqOut in my pedal chain?

The FreqOut should generally be the first pedal in your signal path.

×
