OBSCURA

Altered Delay Pedal

OBSCURA

Altered Delay Pedal

SKU

PAST PRODUCT

Past products are no longer in production, but may still be available through local and online retailers.

Creative control

4 delay algorithm types, up to 2 seconds of stereo delay time, tap tempo, delay repeat hold, and more

True Bypass circuitry

Preserves your tone when the pedal is not in use

High-Voltage operation

For uncompromised signal quality

Obscura

SPECIFICATIONS

General Specifications

Controls

Level, Delay Type, Time, Repeats, Tone, Degrade, Delay Tails On/Off, Effect On/Off

Switches

Soft Click, Vacuum Style Footswitch; Reverb Tails On/Off Toggle Switch

Power Requirements

9 VDC external power supply (required)

Power Consumption

675 mW (< 75 mA @ 9 VDC)

Current Draw

75 mA (typical at 9 VDC)

Power Supply Model (Sold Separately)

PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)

Power Supply Output

9 VDC 1.3 A
Dimensions

Length

4.4"

Width

2.65"

Height

2.0"

Weight

1.0 lb.
Audio Output

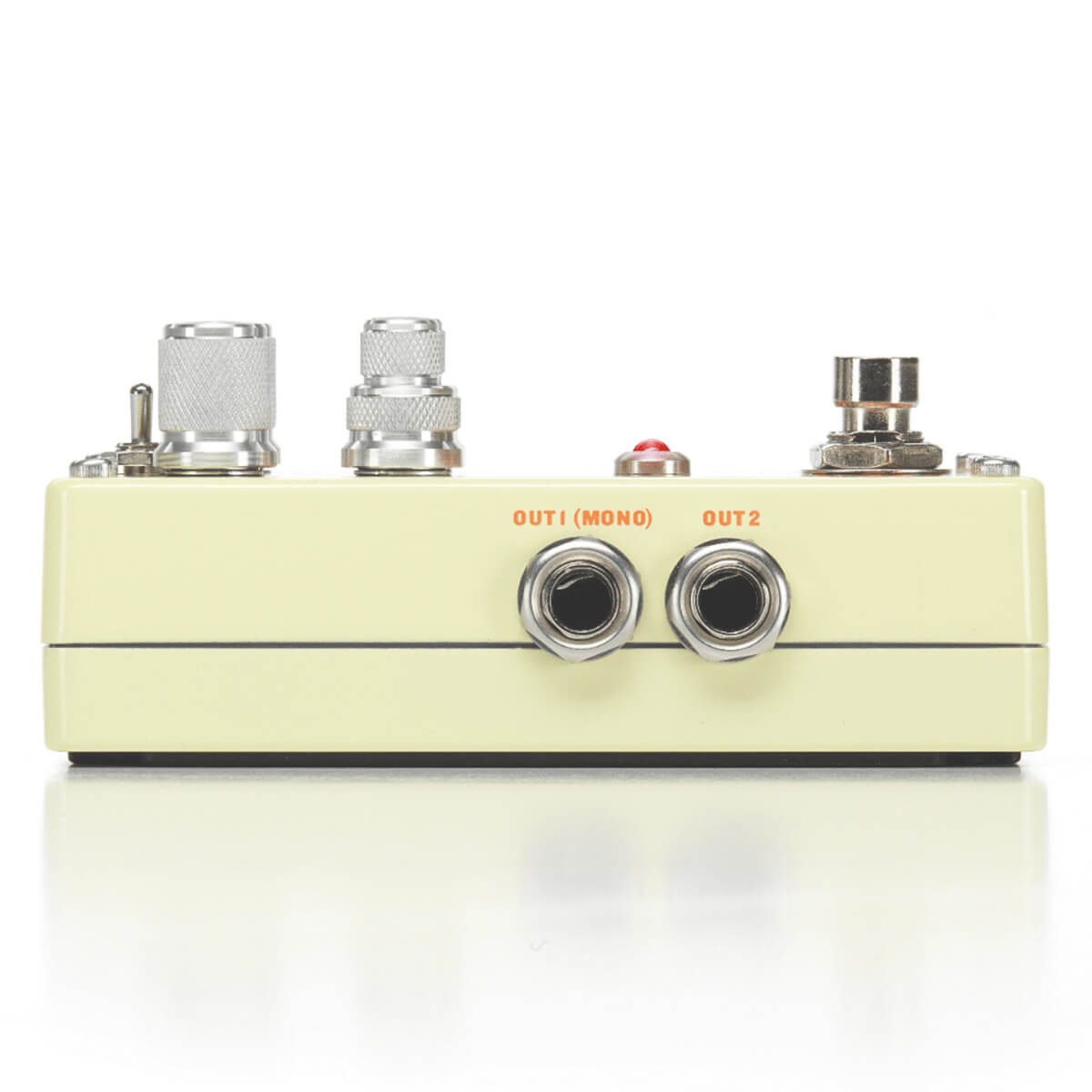

Outputs

Separate Left and Right ¼" Unbalanced (Tip-Sleeve)

Output Impedance

Effect on = 1 kΩ; Effect off = True hardwire bypass
Audio Input

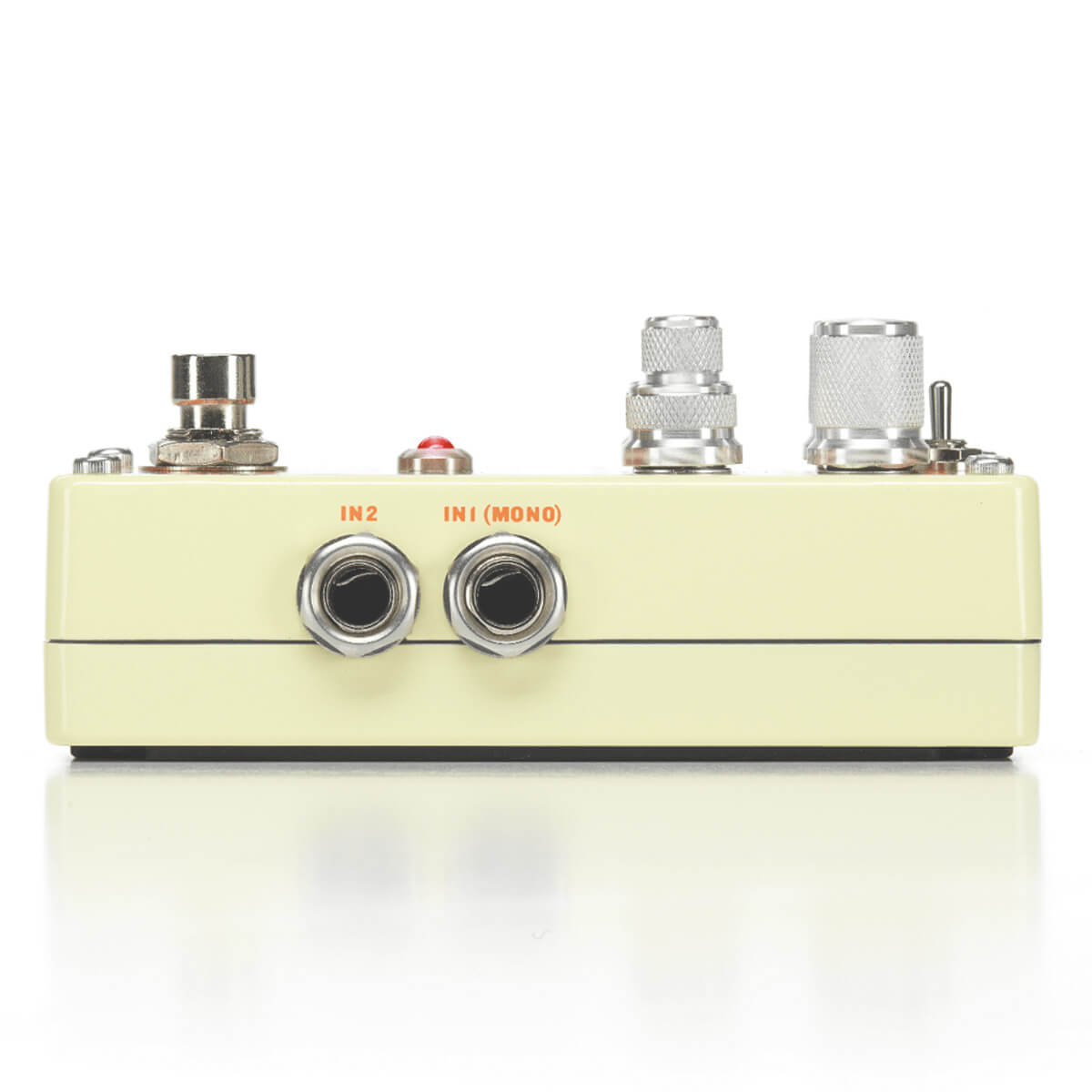

Inputs

Separate Left and Right ¼" Unbalanced (Tip-Sleeve)

Input Impedance

Effect on = >1 MΩ (stereo), >500 kΩ (mono); Effect off = True hardwire bypass
