This One Goes to TEN

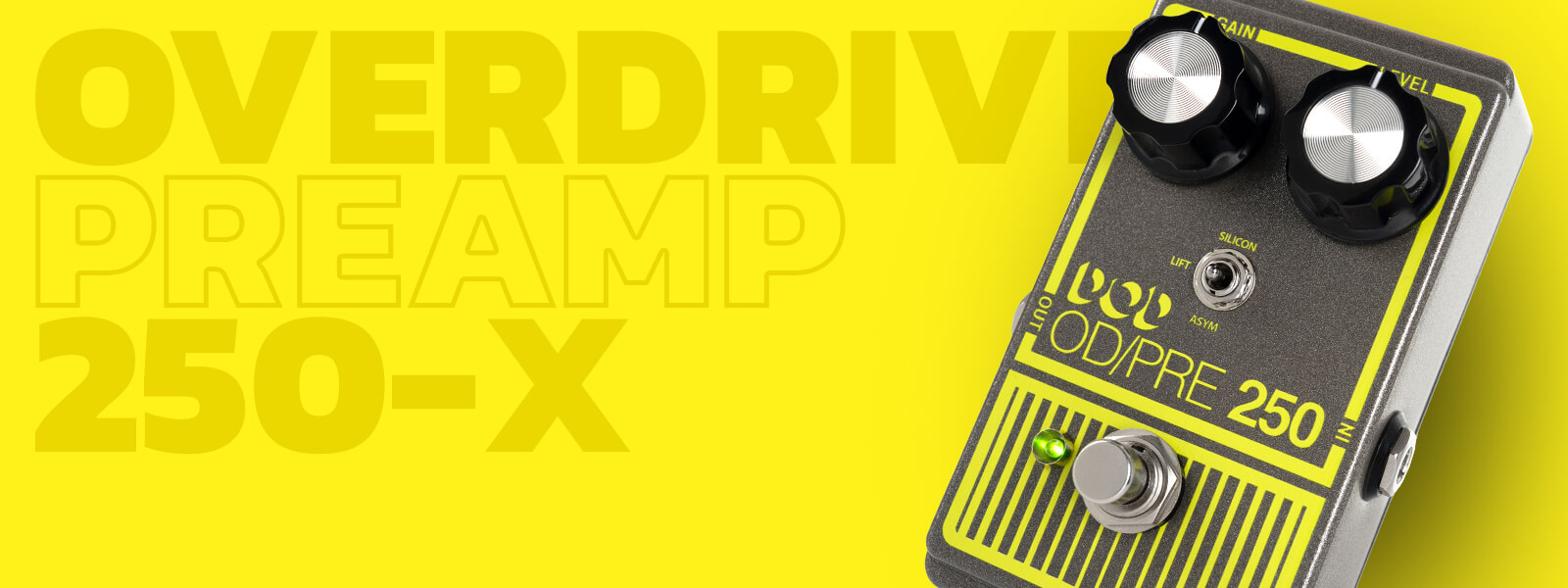

Overdrive Preamp 250-X

DOD Heritage

10th iteration of the legendary DOD Overdrive Preamp 250

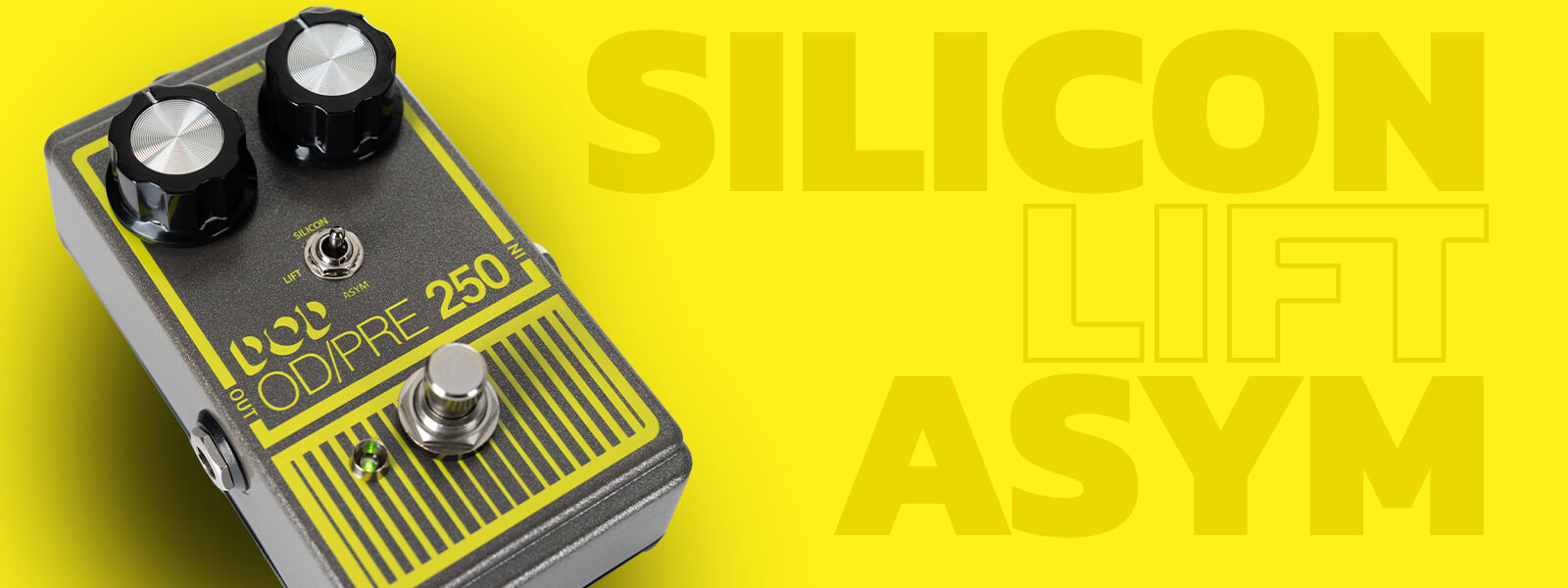

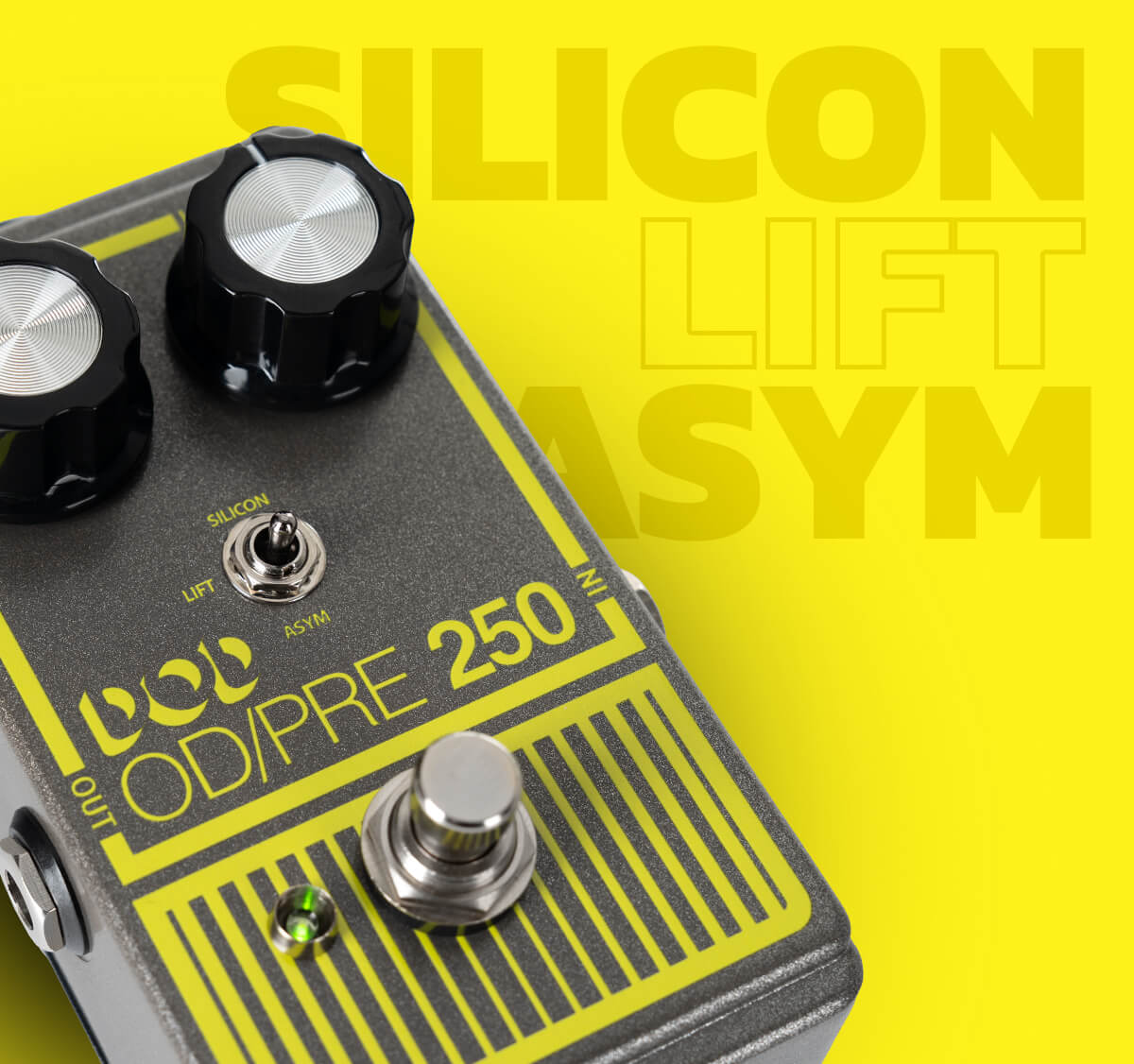

3 Overdrives in One

Switch between vintage-authentic SILICON clipping, ASYM asymmetrical clipping, or LIFT for no diode clipping for either clean / dirty boost.

3 Drives and the Truth

10TH 250

10th iteration of the legendary DOD OD250.

THE MOST VERSATILE 250 EVER

From clean boosts and subtle grit to heavy distortion, this is the most versatile and expressive 250 pedal ever made.

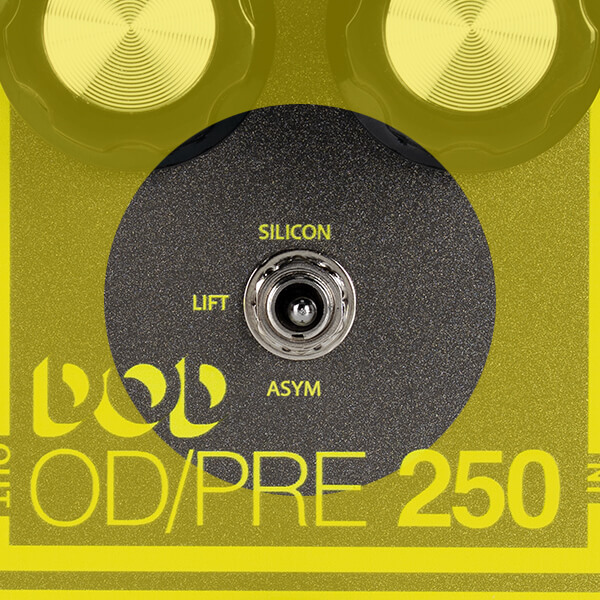

3 SELECTABLE VOICES

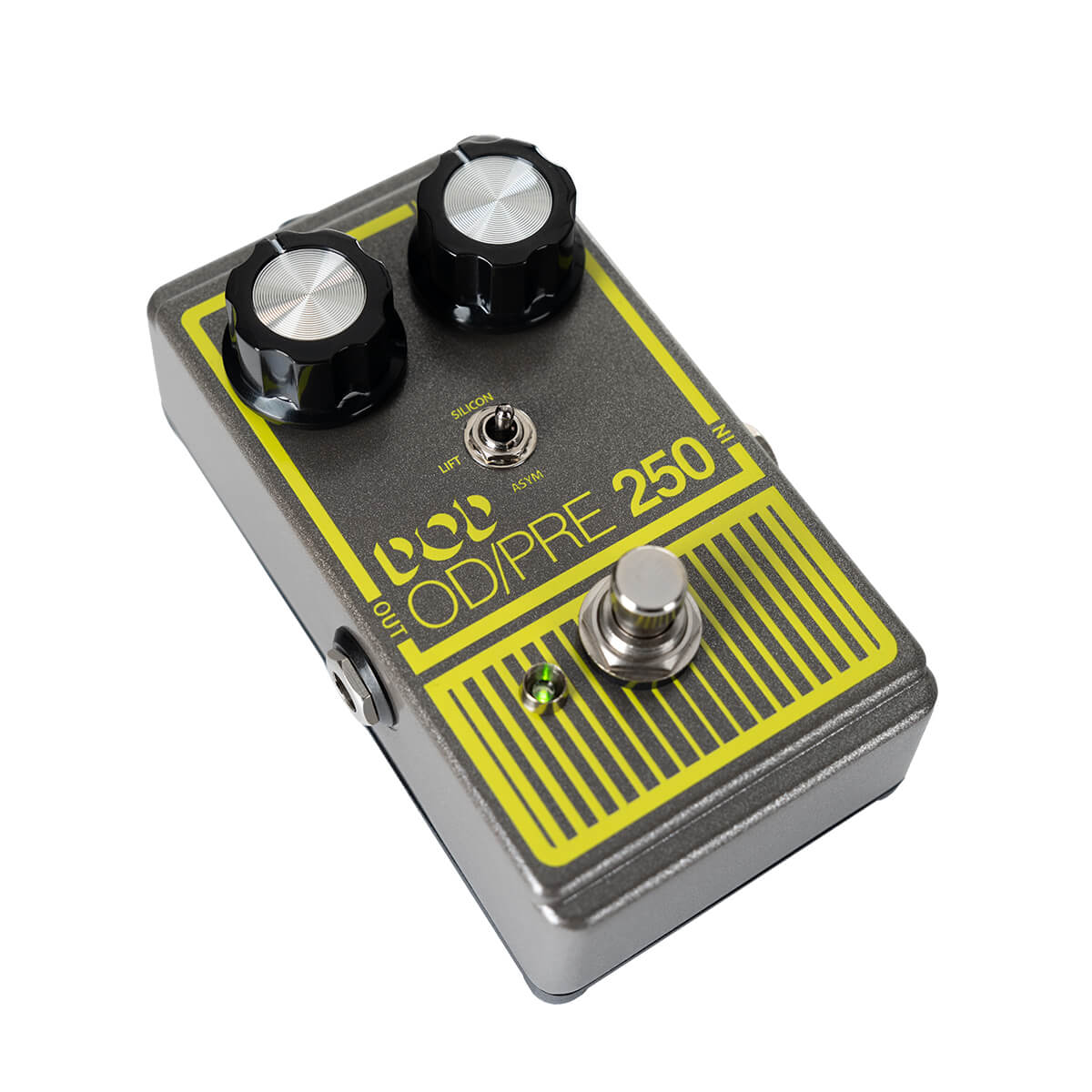

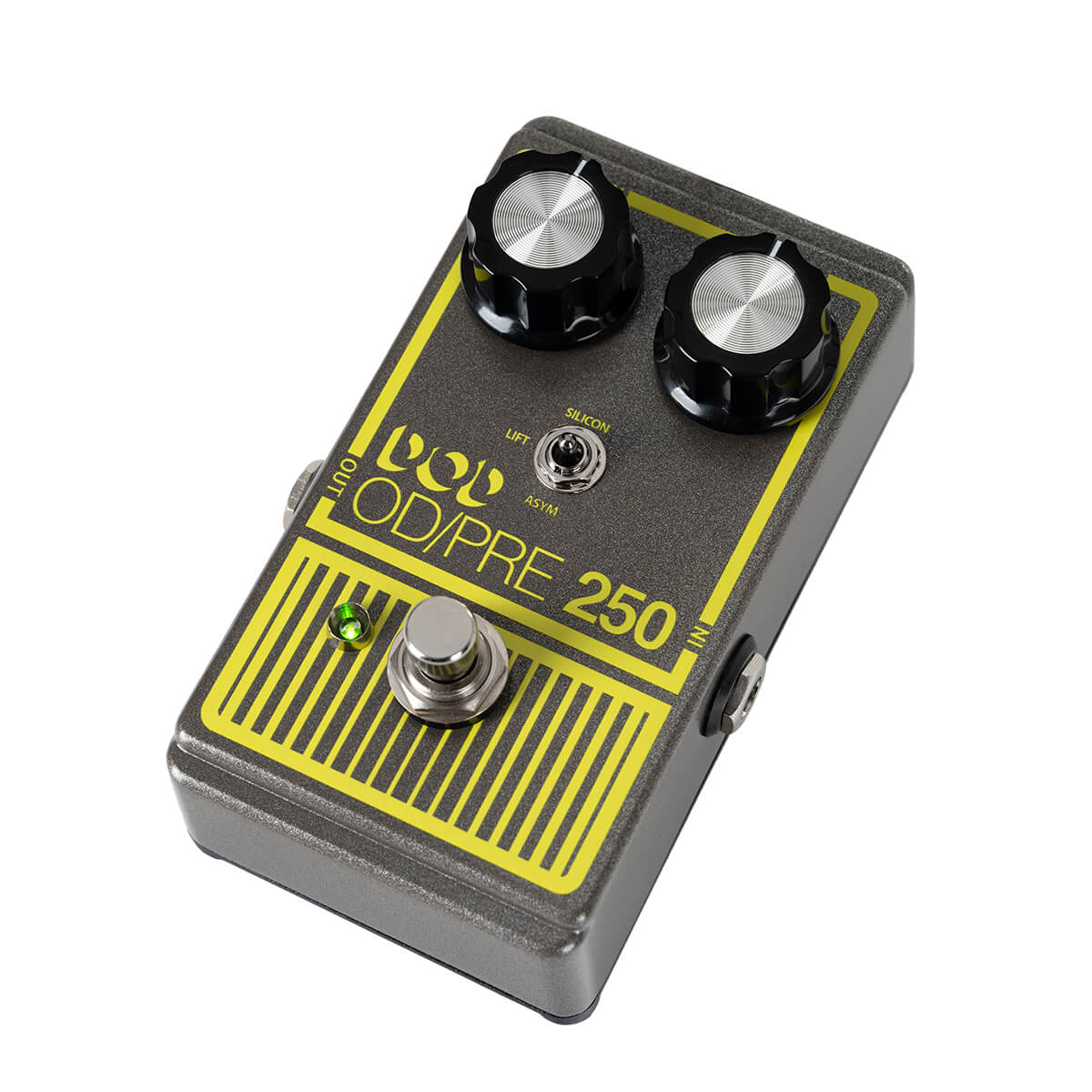

3-way toggle switch for traditional SILICON, ASYM (Asymmetrical), and LIFT which eliminates diode clipping entirely from the signal path, providing a clean boost at moderate levels, or even a “dirty” boost as you drive the LM741 op-amp into clipping at higher gain settings.

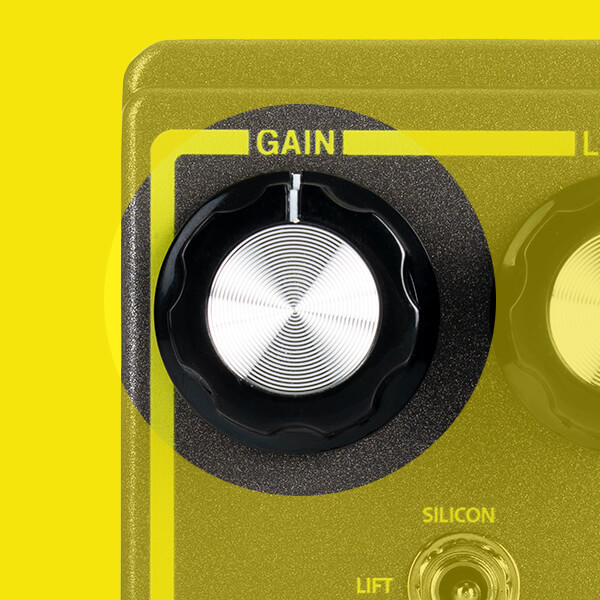

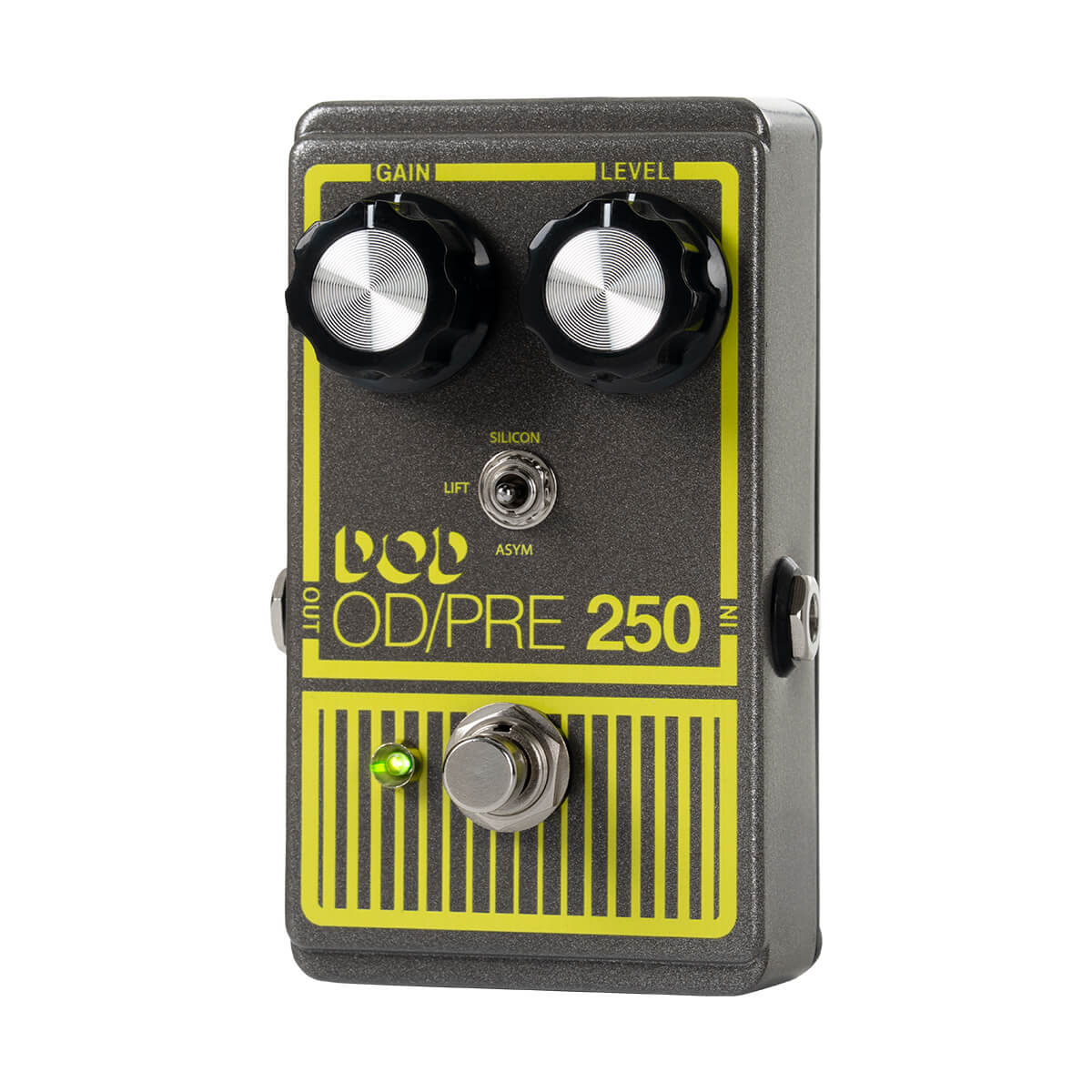

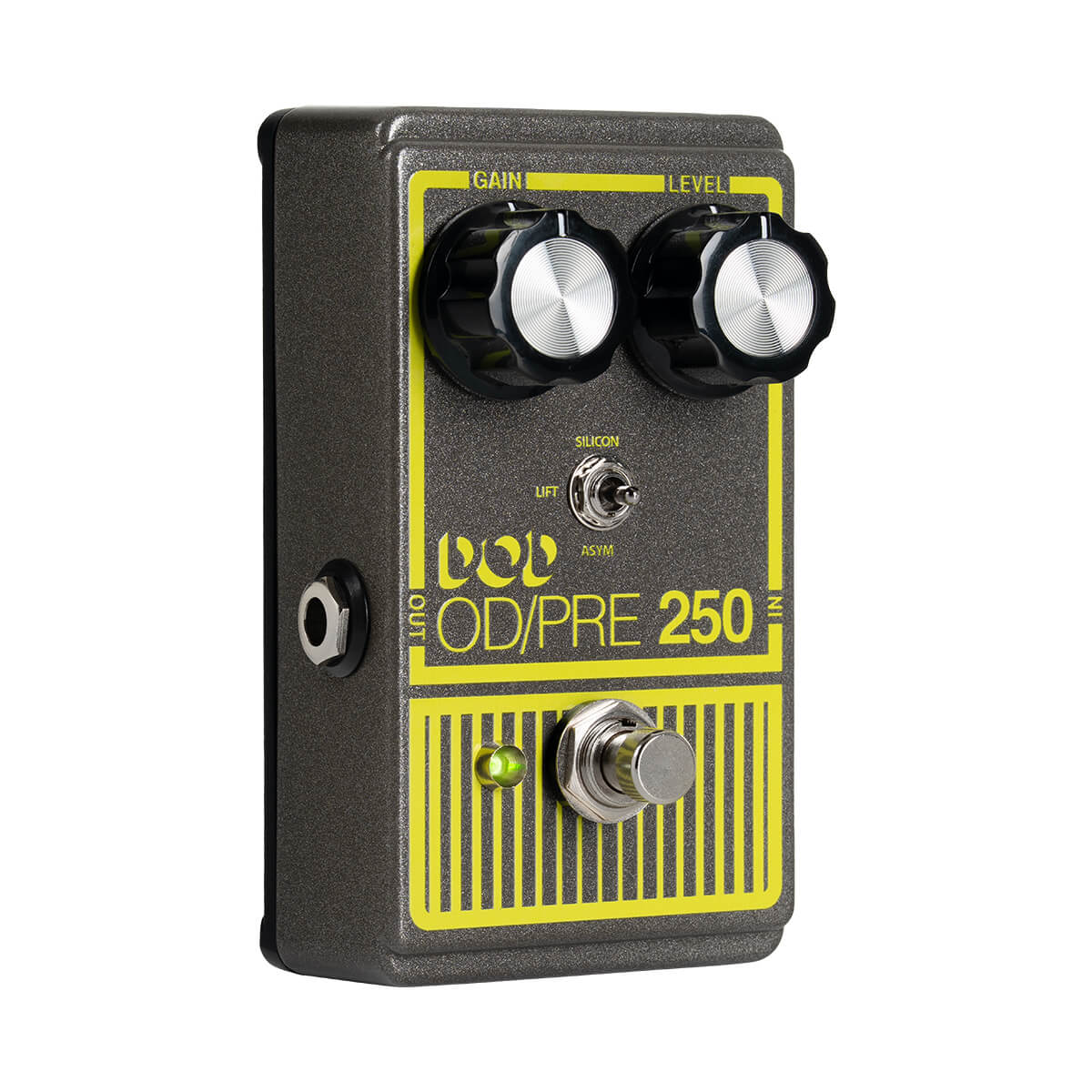

GAIN CONTROL

Control the amount of overdrive, from subtle grit to full distortion.

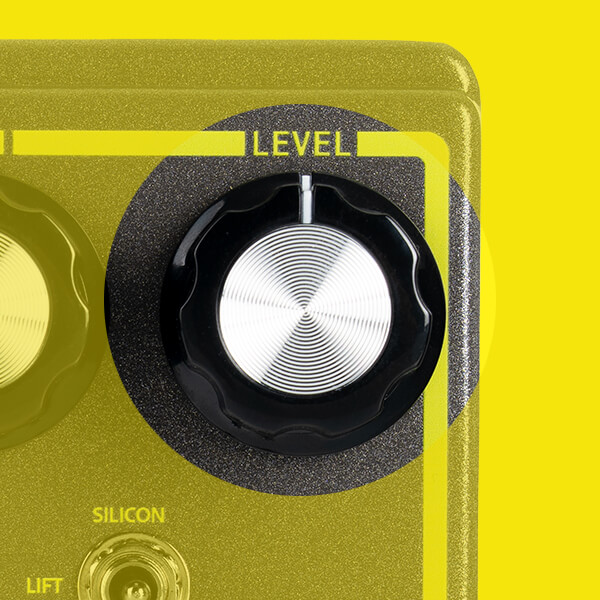

LEVEL CONTROL

Match to your amp’s volume, or crank it up to boost leads and solos.

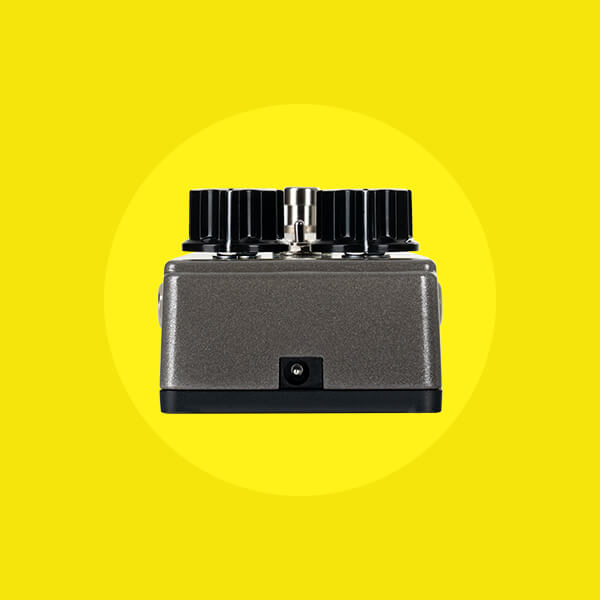

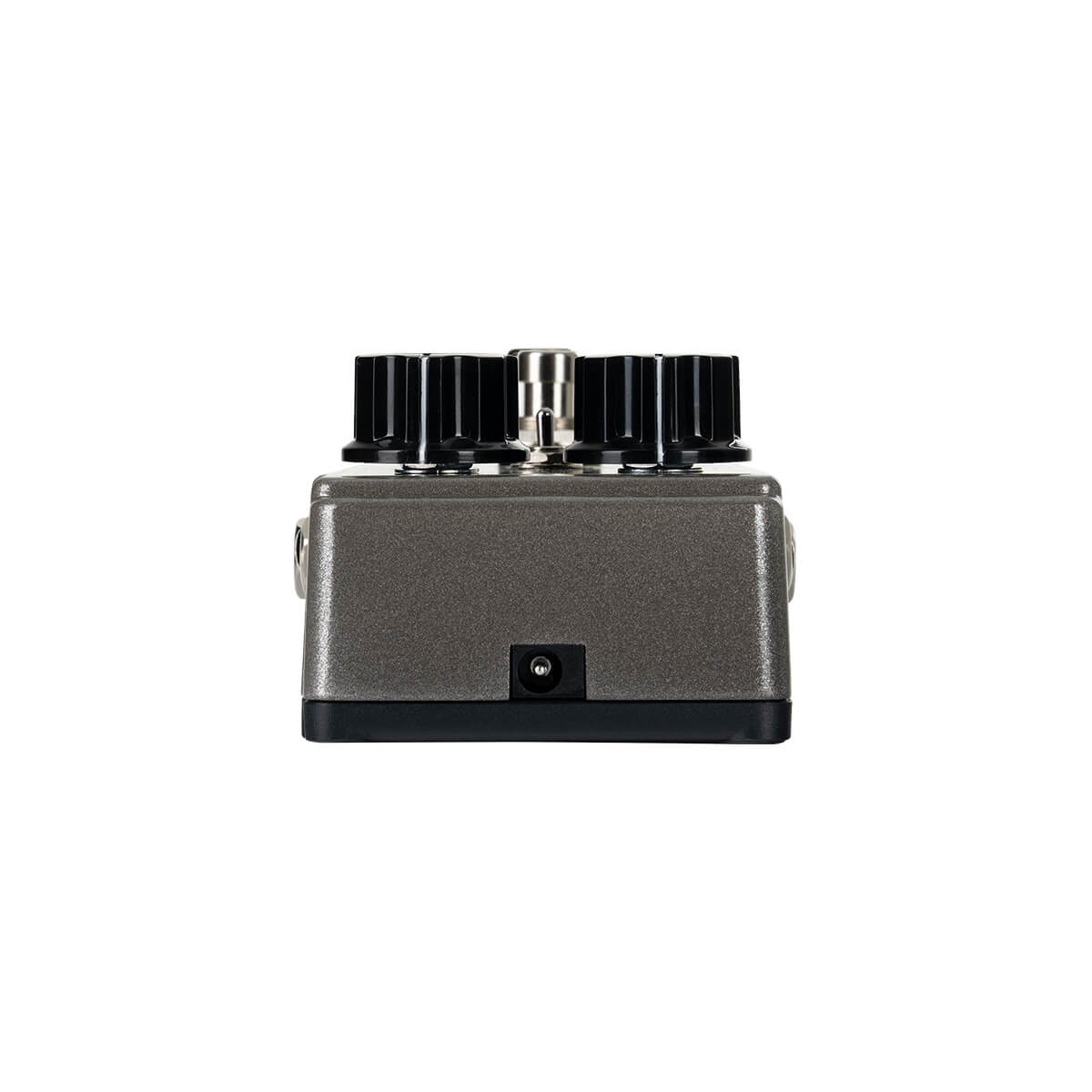

POWER SUPPLY CONNECTOR

Connect a standard 9V PS0913 DC power supply (optional) to this connector. +18V tolerant circuitry.

Overdrive Preamp 250-X

OD250 - 10th Edition

Overdrive Preamp 250-X

OD250 - 10th Edition

SKU

Buy Now
Find a Overdrive Preamp 250-X

Buy now

Buy local
map icon

Find a Dealer

  • Buy local

Buy Now

Shop Now

Guitar Center

  • Shop Now
Shop now
Musician's Friend

Musician's Friend

  • Shop now
Shop Now
Sweetwater

Sweetwater

  • Shop Now
Shop now

American Music Supply

  • Shop now
Shop now

zZounds

  • Shop now
Buy Local
map icon

Find a Dealer

  • Buy Local

You might also like

go to Overdrive Preamp 250 50th Anniversary product page

Overdrive Preamp 250 50th Anniversary

go to Overdrive Preamp 250 product page
DOD Overdrive Preamp 250 distortion + boost pedal top.

Overdrive Preamp 250

go to Chthonic Fuzz product page

Chthonic Fuzz

go to Carcosa Fuzz product page
DOD Carcosa Fuzz analog fuzz guitar pedal in black with yellow graphics. Top view

Carcosa Fuzz

go to Looking Glass product page
DOD Looking Glass class-a FET overdrive guitar pedal in silver. Top view

Looking Glass

go to Rubberneck product page
DOD Rubberneck analog delay guitar pedal in white with blue graphics, Front view

Rubberneck

go to Whammy product page
Digitech Whammy Effects Pedal top view

Whammy

go to Whammy DT product page
DigiTech whammy DT classic pitch shifting guitar pedal in red top view

Whammy DT

go to Drop product page
DigiTech Drop polyphonic tune guitar pedal in red with drop arrow graphics. Top view

Drop

go to Whammy Ricochet product page
DigiTech Whammy Ricochet pitch shift guitar pedal in textured red. Top view

Whammy Ricochet

go to Mosaic product page
Digitech Mosaic polyphonic 12-string effect guitar pedal in black with gray graphics. Top view

Mosaic

go to Mini Expression product page
DOD Mini Expression ultra compact expression guitar pedal in black. Top view

Mini Expression

go to Mini Volume product page
DOD Mini Volume ultra compact volume guitar pedal in black and silver. Top view

Mini Volume

go to Phasor 201 product page
DOD Phasor 201 phase shifter pedal top.

Phasor 201

Overdrive Preamp 250-X

SPECIFICATIONS

General Specifications

Dimensions

 4.68” (11.88cm) x 2.63” (6.68cm) x 2.25” (5.71cm) / (L x W x H) - (Jack W = 2.92” (7.41cm))

Weight

 0.56 lbs. (255g)

Input

 1/4” Instrument Phone Jack

Input Impedance:

 >300kΩ typical

Output:

 1/4” Instrument Phone Jack

Output Impedance:

 9.1kΩ – 27.5kΩ (based on Level control position)

Gain:

 +9.5 dB to +46.7 dB

Power Input:

 2.1mm DC Barrel Jack, center (tip) negative

Chassis:

 Aluminum

Power Supply:

 9V Alkaline Battery, DigiTech PS0913DC Power Supply, Other well-regulated 9V center (tip) negative supply +18V tolerant

Consumption:

 7mA typical

Warranty:

 1 year
Product Information

SKU:

 DOD-250-X

SKU UPC:

 8 10147 52011 4

SKU Dimensions:

 4.88” (12.4cm) x 3.38” (8.6cm) x 2.55” (6.5cm) (L x W x H)

SKU Weight:

 0.68 lbs. (310g)

Designed In:

 Salt Lake City, UT, USA

Fully Assembled In:

 Indonesia
